Wireless Controls and Automation

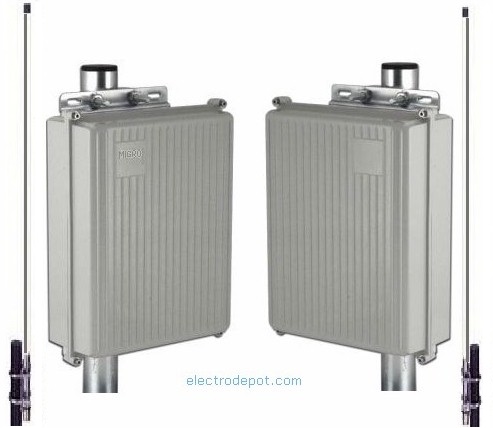

Industrial Wireless Radio Controls Modules
Panel Mount Ready UPS Battery Backup System

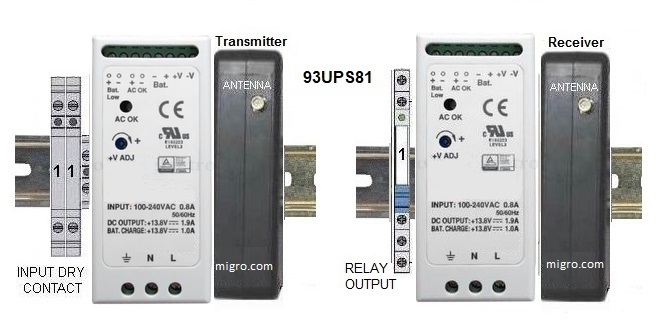

   9UPS81   Single (1) Channel  Transmitter and Receiver Set

 1 CH  9UPS81 System    Please Request latest price     (*) Special Order     Add the Antennas

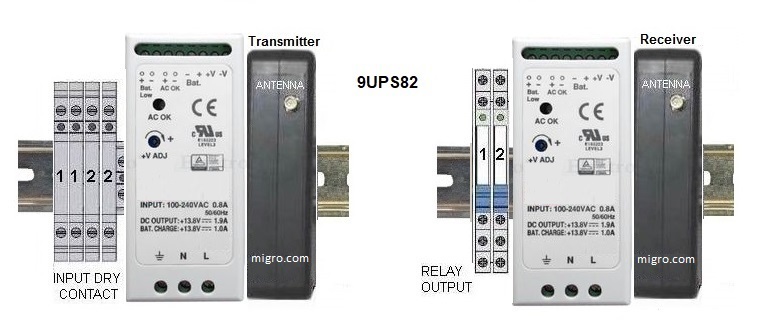

9UPS82   Two (2) Channel  Transmitter and Receiver Set

 2 CH  9UPS82 System    Please Request latest price    (*) Special Order       Add the Antennas


  System with Battery Charger and UPS
AC input range: 90 - 264VAC
Output 1: Load output voltage: 12Vdc
Current range: 0 - 2.9 Amp
Output 2: Battery output voltage: 13.8Vdc
Charging current: 1.0 Amp

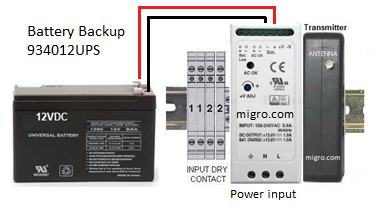

934012UPS Module Charges the battery,
Alarm signal for AC Ok and Battery Low
Battery low cut off/ reverse protection
Protection: shortcut/ over load / over voltage

      Battery not included

Special Order,

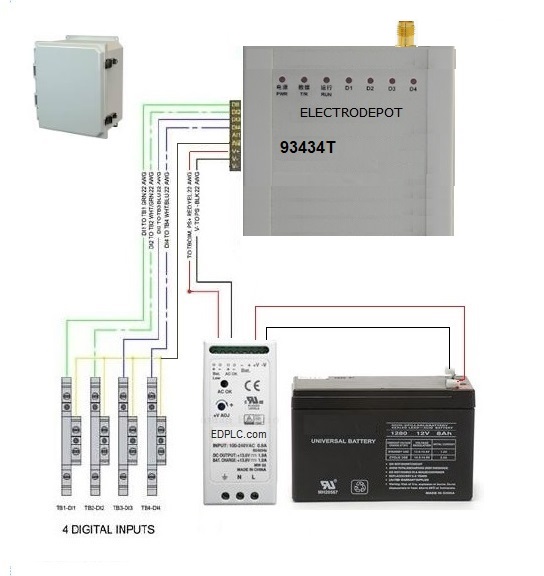

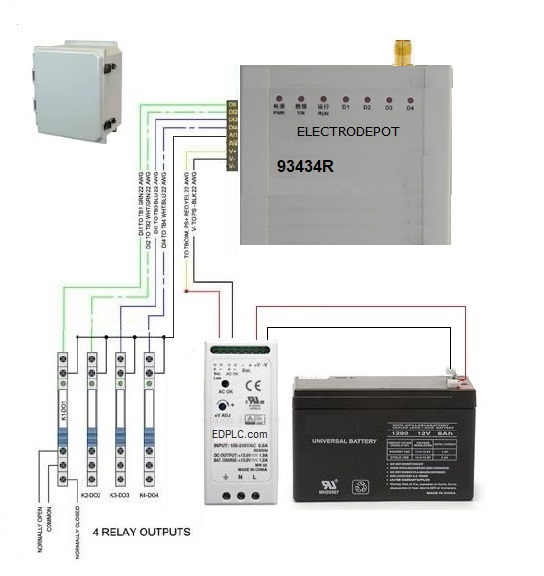

 Wiring Example in a 4 Channel System
  Transmitter 4 Channel   Receiver 4 Channel


DISCLAIMER:  Radio control equipment in not to be used in life safety.
Radio Installations shall be performed by a certified professional.
