Wireless Controls and Automation


Industrial Wireless Radio Controls
NEMA4 Metal

  Performance
2 miles ( 3 km) line-of-sight w Omni or Yagi antenna
1000 feet (300m) inside partially obstructed
Operation:  120/240VAC or 12VDC

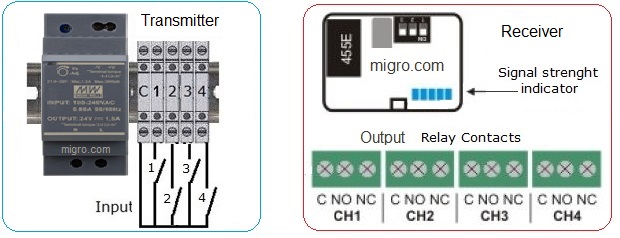

Transmitter input N/O Dry contact
Relay Output SPDT, 10A @250VAC Class 2 pilot duty
Heavy Duty NEMA4, IP65 Metal enclosure
License free 430 - 450MHz Industrial ISM band
Factory configured systems, Ready to operate
No setup or programming required
Optional UL, CSA and CE Enclosure



 Operation   Transmitter Receiver
 Continuous: Close switch
Open switch
Relay ON
Relay OFF
.

Specifications

Applications:
Industrial Monitoring,

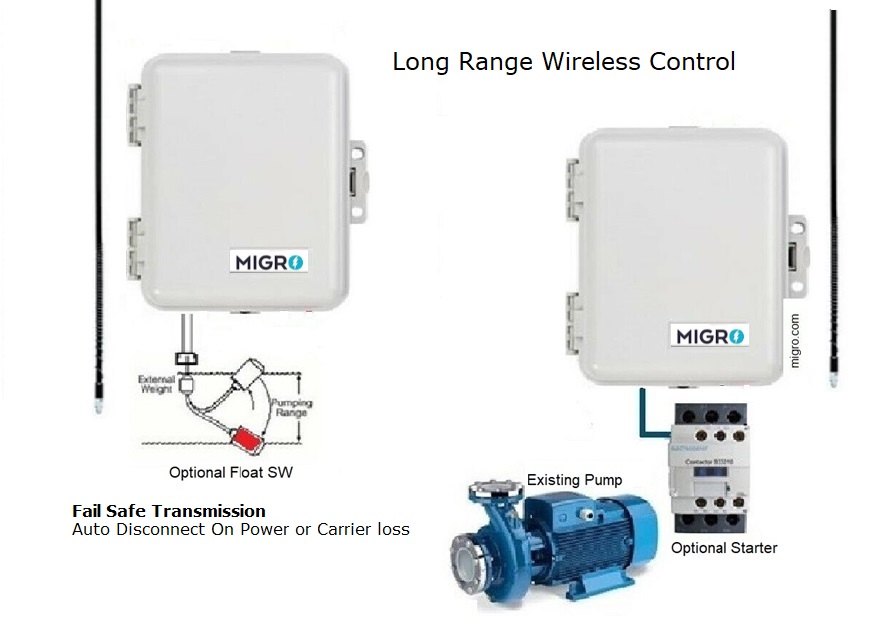

Pump control, Monitor remote
 instruments, sensors,
Lighting, Packing and mobile
 system, PLC remote, SCADA,
Factory process control
 and alarms. Generators

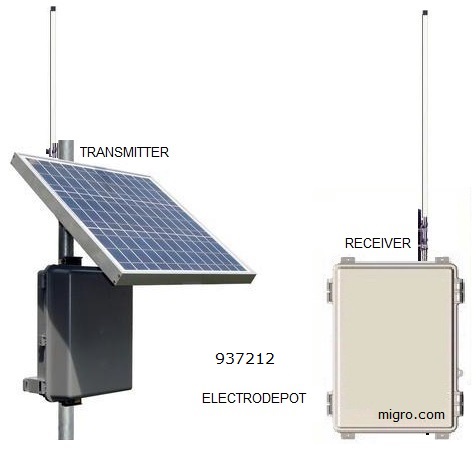

Solar, Wire replacement



Request a Quotation

.
 Transmitter - Receiver  12V
938111  Single (1) Channel    Wiring

938112  Two (2) Channel
Wiring

938114  Four (4) Channel
Wiring

Transmitter - Receiver 120/220VAC
938211 Single (1) Channel   Wiring

938212  Two (2) Channel    Wiring

938214   Four (4) Channel    Wiring



   Specifications      Digital Transmitter
Supply power 120/240VAC or 12VDC /  5watt
Inputs  N/O Normally Open, digital dry contact
Transmitter power per FCC Part 15.249,  50mV/m @ 3m
Transmission Digital Encoded   Gaussian_frequency-shift_keying
Channels 16 addresses per system  GFSK
Input Wiring Din Terminals,  Dry Contact
Response Loop 500 msec
Weight 18 lb (9.40kg)  each unit
Dimensions 14"W x 16"H x 8"D (350 x 410 x 200 mm)

   Specifications      Digital Receiver
Supply power 120/240VAC or 12VDC /  5watt
Output   Relay SPDT  contact 10Amp, 30V/240vac  Class 2 pilot duty
Frequency 433 MHz  • License free Industrial ISM band
Configuration DIP switch factory preset
Compliance FCC CFR part 15.247, 95 sub E
Wiring Components mounted on 35mm DIN rail
Antenna Z 50 Ohm SMA RF connector
Ambient temp  14 to 140 F (-10 to 60 C)
Enclosure  NEMA4, IP65 steel enclosure






Antenna Selection ( TWO  are required )


938432   Yagi antenna 3 E

7 dBi  1 Mile+
Length: 18", Weight: 1.lb
with 10 ft coax cable and connector
938434  Yagi antenna 12 E

 14 dBi  3 Mile+
 Length: 43", Weight: 3.lb

 with 10 ft coax cable and connector




938438

Omni directional antenna


3 dBi  1 Mile+
Length: 37", Weight: 3.lb
with 10 ft coax cable and connector

938091,

7" Omni Antenna


0 dBi Short range
5ft coax cable
  SMA




  Optional UPS Power Supply with Battery Backup:
  Transmitter 4 Channel   Receiver 4 Channel

Accessories

Contactors
933020 Miniature Contactor

20A, 3 Pole, 12VDC Coil
2HP @240V, 7.5HP @460V
1HP @120V,
4 KW@ 220V
20Amp AC-1, 12Amp. AC-3
Screw Terminals, 600V,
1 N.O. Aux.,
DC Coil Current : inrush/sealed  250mA
Dimension: 1.7 x 2.5 x 2.3 in
 (45 x 64 x 58 mm)
Surface or DIN rail mountable

  933020     $49.99

.

Mechanical Float Switch

  930650     $69.99

DISCLAIMER:  Radio control equipment in not to be used in life safety.
Radio Installations shall be performed by a certified professional.
