Industrial wireless monitoring and control, 10 Miles (16 km) line of sight


932111 NEMA4
Transmitter  1CH

Request a Quotation

 migro.com




932101 NEMA4
Receiver 1 CH
Request a Quotation




Optional Battery Back Up System.




Portable
Transmitter

2 CH

937202


Specifications

TX 2CH




932212 NEMA4
Transmitter 2 CH
  Request a Quotation

migro.com


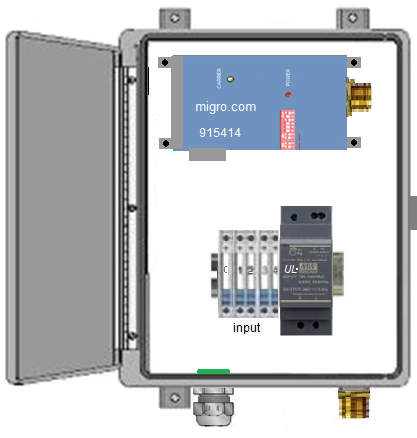

932114 NEMA4
Transmitter 4 CH
  Request a Quotation

Optional Battery Back Up System


932102 NEMA4
Receiver 2 CH
 Request a Quotation



932104 NEMA4
Receiver 4 CH
Request a Quotation


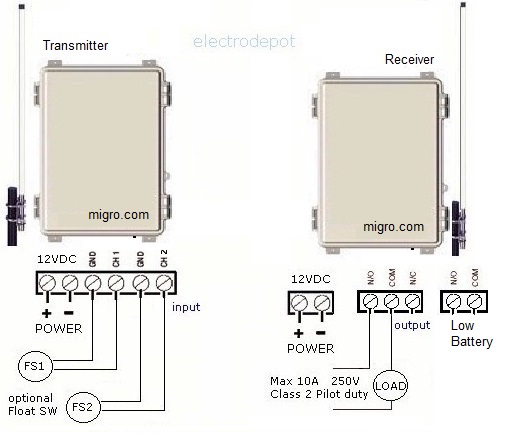

  Wiring example 4 channel with optional battery backup





Portable
Transmitter

 4 CH

937204



Specifications



TX 4CH



PERFORMANCE

10 Miles ( 16 km ) line of sight w Hi-Gain antenna
2000 feet (600m) inside partially obstructed
Encoded system with 65,536 digital 16 bit codes

Simple DIP switch programming setup
System is Solar Ready 12VDC operation
Unlimited transmitter
and receivers can be added
No programming or internet required
27 MHz license free section industrial band

COMPLIANCE: per FCC Part 15.249,  50mV/m @ 3m
Circuit board Compliance with UL796 and UL 94
MIL-STD-461E for Electro-Magnetic Interference (EMI)
MIL-STD-901D Grade A for High Impact Shock
MIL-STD-167B for Vibration

■  Optional Repeater     Antenna Range Calculator


SPECIFICATIONS

 Transmitter Input: Dry Contact
 Receiver Output  N/O / N/C SPDT Relay 10 Amp @ 240V
 Operation frequency: 27 MHz digital encoded, industrial band
 Operating Temperature: -4 to +140 F (-20 to +60 C)
 Housing: weather-resistant NEMA 4 enclosure
 Dimensions: 11.5"W x 8.5"H x 4"D (240 x 230 x 100 mm)
 Operation voltage: 12VDC
 Power: Transmitter standby >0.001 mA, energized 2A (1 Sec.),
 Power draw: Receiver standby 30mA, energized 120mA
 Transmission loop 500 miliseconds

Short pulse transmission comply MIL standard


 Antenna 50 ohm, Antenna sold separately


Optional UL, CSA and CE Enclosure Request form


APPLICATIONS
Remote control operation
Gas and oil pipeline alarm
Power monitoring
Perimeter protection
Solar systems monitoring
Remote I/O PLC controller
Long range target control
Avionics and Marine operation

Automatic pump control
Tank level monitoring
Long range alarm systems
Factory automation
Lighting controls
Irrigation System
Traffic Controller
Mobile operation
Wire replacement
Special Relays


RF Test equipment

SWR/RF/Field Strength Meter
Coaxial Cable w Connectors




937099   Antenna


27 MHz
Three-foot base
w 10ft coax cable kit
Specifications


Optional Repeater


12VDC Power Supply

Specifications

RF  Components

Coaxial UHF in line, Lighting Arrestor

Solar power supply Kit

Optional UPS Battery backup

Power reserve for up to 100 Hours
Charge controller
UPS Function
Short and overload protection
