Industrial Wireless Radio Controls

915472 Two (2) Channel System
915474 Four (4) Channel System
915478 Eight (8) Channel System
|
Performance
•
6 miles ( 10 km )
line-of-sight
• Extended range up to 20 km
• Operation: 120/240VAC
or 12VDC
•
Transmitter input N/O Dry contact
• Relay Output SPDT, 8A @250VAC
Class 2 pilot duty
•
Heavy Duty NEMA4, IP65 enclosure
• License free operation
MURS band
• Factory configured systems, Ready to operate
• No setup or programming required
• Not limited to line-of-sight
communication |
.
| Supply power |
120/240VAC or
12VDC / 5watt |
|
Inputs |
N/O Normally
Open, digital dry contact |
| Transmitter power |
per
FCC Part 15.249,
50mV/m @ 3m |
| Transmission |
Digital Encoded
Gaussian_frequency-shift_keying |
|
Channels |
16 addresses per system
GFSK |
|
Input Wiring |
Din Terminals,
Dry Contact |
| Response |
Loop 500 msec
|
| Weight |
18 lb (9.40kg)
each unit |
| Dimensions* |
10"W x
8"H x
4"D (254 x 200 x 100 mm) |
|
Specifications Digital Receiver
|
| Supply power |
120/240VAC or
12VDC / 5watt |
|
Output |
Relay 8Amp, Class 2 pilot duty |
| Frequency |
154MHz •
License free MURS band |
|
Configuration |
DIP switch factory
preset |
|
Compliance |
FCC CFR part 15.247, 95 sub E |
| Wiring |
Screw Terminals |
| Antenna Z |
50 Ohm |
| Ambient temp |
14° to 140° F (-10° to 60°
C) |
| Enclosure |
NEMA4, IP65
|
Dimensions * Final
Component layout
and Dimension may vary
DISCLAIMER:
Radio control equipment
in not to be used in life safety.
Radio Installations shall be
performed by a certified professional.
|
|
|
Long Range
Wireless Systems 154MHz
■
Applications:
Industrial Monitoring, Pump control, Monitor remote
sites, Tank Level,
Lighting control, Remote Mobile system, PLC remote, SCADA,
Gates.
Factory process control, Alarms, Generators,
Solar, Wire replacement.
|
Please
Request latest price
|

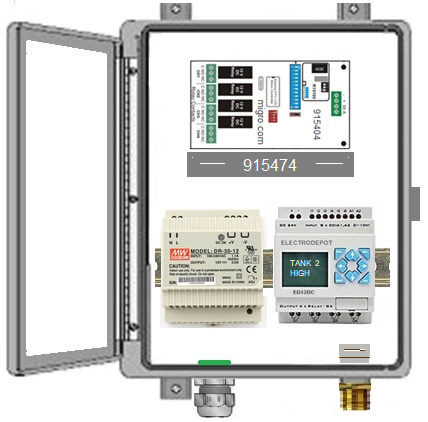

Receiver with Clear Cover Enclosure |
|
|
 |
 |
|
Transmission Mode |
Selection
for each
channel |
1 Continuous
2 Off Delay Timing
3 Pulse Output |
4
Latching
|
|
5
Fail
Safe Mode |
Supervised transmission
for designated channel |
Package Kit:
One Base
Transmitter, One Base Receiver
Two 34" Omni Antennas with 10ft coaxial cable, NEMA 4 Enclosures &
Instructions |
